How to use unsaved settings values for exportSelect (supportsHandlebar)

Integrator.io
1

Hi,

I’m trying to use the supportsHandlebar example from the Common Form Fields documentation, but it doesn’t seem to work.

https://docs.celigo.com/hc/en-us/articles/360059205112-Common-form-fields#UUID-6ce95fef-1430-cbc6-4dfe-e5f0285a0f8e_section-idm73515219760120

My use case is: I have 2 dynamic lookup fields: Companies and Customers. The Companies lookup will look a generic Companies list, and when I select a value for it, I would like the Customer list to update accordingly.

The Companies API endpoint is as simple as: /api/v2.0/companies

The Customers API endpoint, depends on the company value: /api/v2.0/companies(<>)/customers

But this doesn’t work. When I select a Company, I don’t know how to reference the Company Id that was selected on the 1st dynamic lookup.

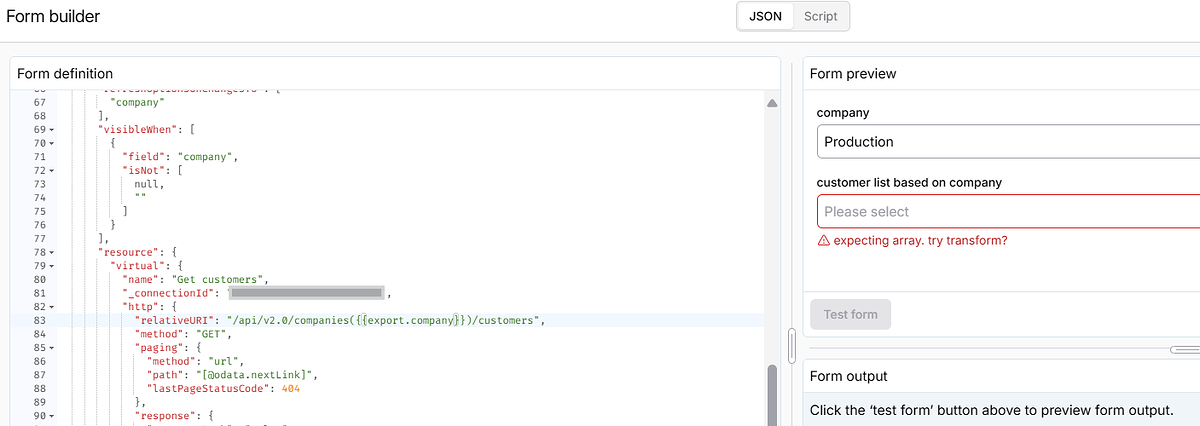

Here’s my Customers exportSelect field, and I’m trying to reference my Company Id field by {{export.company}}, but it doesn’t seem to work, I keep on getting the error message “expecting array. try transform?”

image1338×467 54.9 KB

Any insight here would be great! Thanks,

2

You're pretty close, but probably need a transformation to return the results correctly from the virtual export and to the form.

{
  "fieldMap": {
    "company": {
      "type": "exportSelect",
      "id": "company",
      "name": "company",
      "label": "company",
      "resource": {
        "virtual": {
          "name": "Get companies",
          "_connectionId": "6525a3099085040ecbf55b4d",
          "http": {
            "relativeURI": "/v2.0/companies",
            "method": "GET",
            "paging": {
              "method": "url",
              "path": "[@odata.nextLink]",
              "lastPageStatusCode": 404
            },
            "response": {
              "resourcePath": "value"
            }
          },
          "transform": {
            "type": "expression",
            "expression": {
              "rules": [
                []
              ],
              "rulesTwoDotZero": {
                "mappings": [
                  {
                    "generate": "value",
                    "dataType": "string",
                    "extract": "$.id",
                    "status": "Active",
                    "sourceDataType": "string"
                  },
                  {
                    "generate": "label",
                    "dataType": "string",
                    "extract": "$.name",
                    "status": "Active",
                    "sourceDataType": "string"
                  }
                ],
                "mode": "create"
              },
              "version": "2"
            },
            "rules": [
              []
            ],
            "version": "2"
          },
          "adaptorType": "HTTPExport"
        }
      }
    },
    "customer": {
      "id": "customer",
      "name": "customer",
      "type": "exportSelect",
      "label": "customer list based on company",
      "supportHandlebars": true,
      "refreshOptionsOnChangesTo": [
        "company"
      ],
      "visibleWhen": [
        {
          "field": "company",
          "isNot": [
            null,
            ""
          ]
        }
      ],
      "resource": {
        "virtual": {
          "name": "Get customers",
          "_connectionId": "6525a3099085040ecbf55b4d",
          "http": {
            "relativeURI": "/v2.0/companies({{export.company}})/customers",
            "method": "GET",
            "paging": {
              "method": "url",
              "path": "[@odata.nextLink]",
              "lastPageStatusCode": 404
            },
            "response": {
              "resourcePath": "value"
            }
          },
          "transform": {
            "type": "expression",
            "expression": {
              "rules": [
                []
              ],
              "rulesTwoDotZero": {
                "mappings": [
                  {
                    "generate": "value",
                    "dataType": "string",
                    "extract": "$.id",
                    "status": "Active",
                    "sourceDataType": "string"
                  },
                  {
                    "generate": "label",
                    "dataType": "string",
                    "extract": "$.displayName",
                    "status": "Active",
                    "sourceDataType": "string"
                  }
                ],
                "mode": "create"
              },
              "version": "2"
            },
            "rules": [
              []
            ],
            "version": "2"
          },
          "adaptorType": "HTTPExport"
        }
      }
    }
  }
}

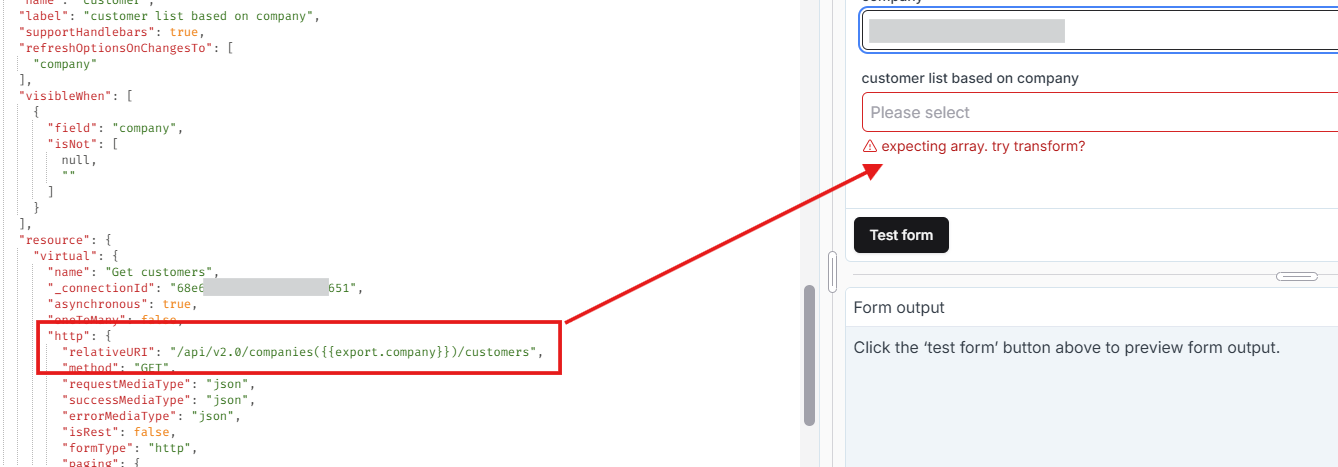

image3344×1706 506 KB

All list options require some standard format which is why a transformation is needed to return a response such as:

"options": [
  {
    "items": [
      "Create",
      "Update",
      "Delete"
    ]
  }
]

or

{
  "options": [
    {
      "items": [
        {
          "label": "Delhi",
          "value": "Delhi"
        },
        {
          "label": "Hyderabad",
          "value": "Hyderabad"
        },
        {
          "label": "Chennai",
          "value": "Chennai"
        }
      ]
    }
  ]
}
1 Like
3

Hi Tyler, thanks for the answer. It does make sense what you said, but I literally copied your solution (which is very similar to the one on the help article as well), and I just replaced 2 things:

  • Connection ID
  • RelativeURI: In you example, your RelativeURI started with /v2.0, and I changed mine to include /api/v2.0 because my HTTP connector is connecting to a more generic Business Central URL

And still, I’m getting the same error message as I was getting before:

image1407×500 57.3 KB

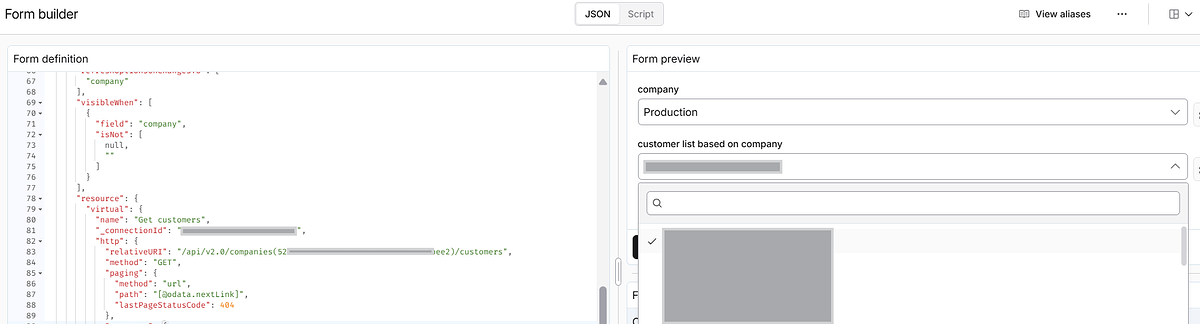

The moment I replace {{export.company}} with a hardcoded Fixed Id, then the list gets populated correctly.

image1802×488 52.3 KB

Does it have anything to do with the Relative URI? Or the way my HTTP Connector is setup?

4

Where are you building this form? Is it on the integration level, flow group, flow, export, or import level? I suspect you might need to use {{integration.company}} or one of the others.

1 Like
5

That was it! Indeed, I had this form being built on the integration settings, not on the export. Thanks!

1 Like
